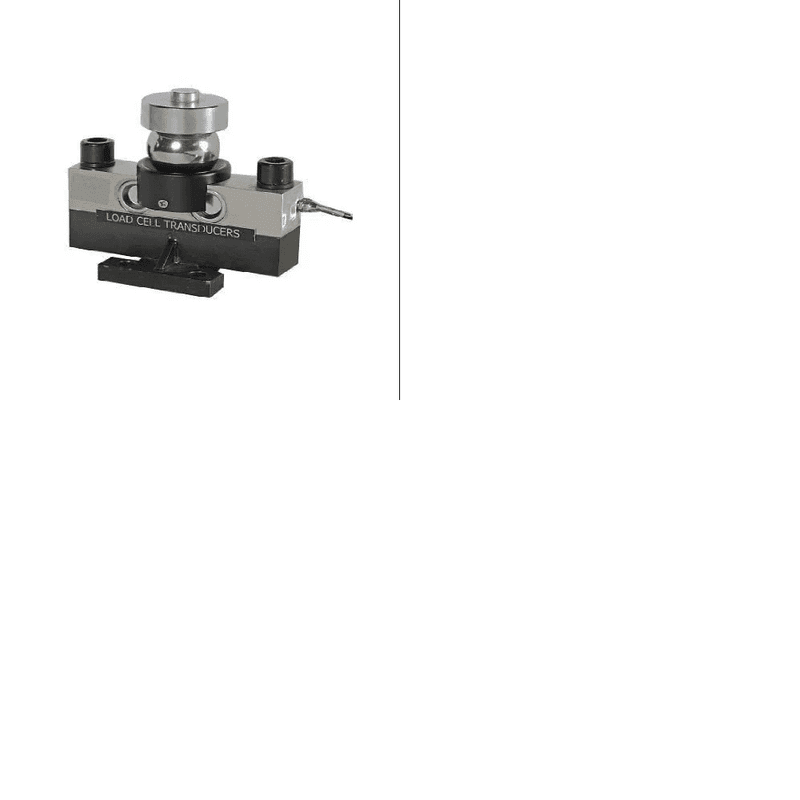

WEIGHBRIDGE LOADCELL- DIGITAL

How Digital Load Cells Work

1. Strain Gauges:
   • Similar to analog load cells, digital load cells use strain gauges to detect deformation in the load cell structure under load.
2. Analog-to-Digital Conversion:
   • The low-voltage analog signal generated by the strain gauges is digitized within the load cell itself using an integrated A/D converter.
3. Digital Signal Output:
   • The load cell transmits a high-resolution digital signal directly to the indicator or a central processing unit.

Key Features of Digital Load Cells

1. Built-in Electronics:
   • Each load cell has integrated electronics for digitizing signals and possibly performing local processing (e.g., diagnostics and temperature compensation).
2. High Accuracy:
   • Less susceptible to signal degradation and noise compared to analog load cells, resulting in more precise weight measurements.
3. Simplified Calibration:
   • Digital load cells often support automatic or remote calibration, reducing setup time and maintenance efforts.
4. Advanced Diagnostics:
   • Many digital load cells include self-monitoring capabilities to detect issues like overloading, environmental damage, or wiring faults.
5. Data Transmission:
   • Use digital communication protocols such as RS485, MODBUS, or CAN bus for reliable data transfer.

Advantages of Digital Load Cells

1. Improved Signal Quality:
   • The digital signal is less prone to noise and interference, even over long distances.
2. Ease of Integration:
   • Compatible with modern weighbridge indicators, automation systems, and IoT devices.
3. Enhanced Durability:
   • Designed to withstand challenging environments, with robust sealing (e.g., IP68 or IP69K ratings).
4. Simplified System Setup:
   • Fewer components like junction boxes are needed, and calibration can be done directly through software.
5. Multiple Load Cell Management:
   • Easily integrates multiple load cells in a networked setup for large or complex weighbridges.

Limitations

1. Cost:
   • Digital load cells are more expensive than analog counterparts.
2. Dependency on Electronics:
   • Failure of the internal electronics may require replacement of the entire load cell.
3. System Compatibility:
   • May not work with older analog weighbridge indicators unless specific adapters or converters are used.
