Technical Specifications (Typical)

  1. Display Type: LED or LCD.

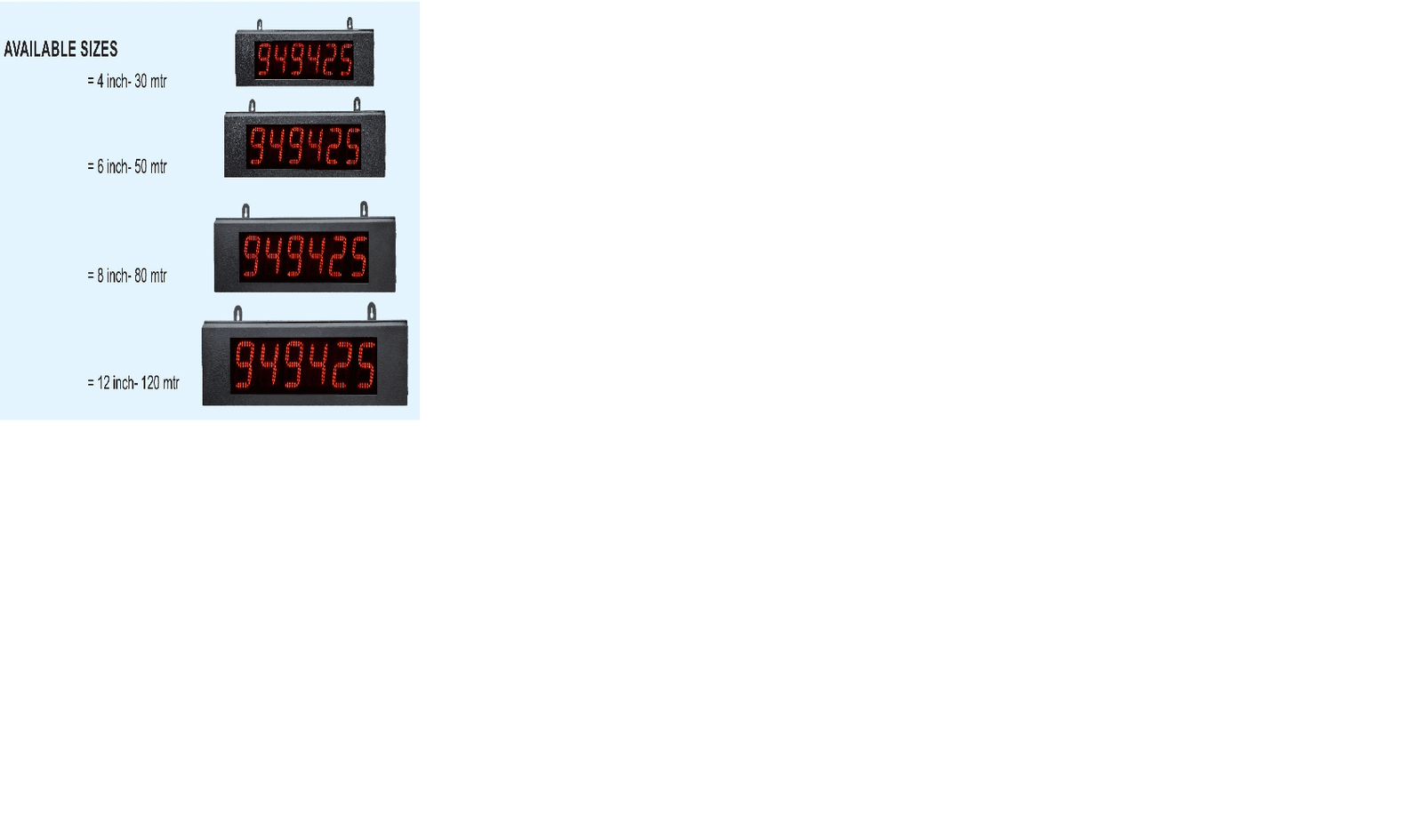

  2. Digit Height: 2–8 inches or more.
  3. Viewing Distance: Up to 50 meters or more.
  4. Enclosure Material: Aluminum or stainless steel with weatherproof coatings.
  5. Power Supply: 110V/220V AC or low-voltage DC options.
  6. Interfaces: RS232, RS485, MODBUS, Ethernet, or wireless.
  7. Temperature Range: -10°C to 50°C (standard), with options for extended ranges.

Setup and Integration

  1. Connection:
    • Use a serial cable (e.g., RS232) or wireless link to connect the jumbo display to the weighbridge indicator.
  2. Configuration:
    • Configure communication parameters like baud rate, data format, and protocol to match the weighbridge system.
  3. Mounting:
    • Install the display at a location visible to all relevant personnel, ensuring the power supply and data cables are secure.
  4. Testing:
    • Verify the display updates weight readings in real-time and troubleshoot any communication issues.

Description

Key Features of Weighbridge Jumbo Displays

  1. Large Digits:
    • Digit heights typically range from 2 to 8 inches or more, making the weight readings visible from long distances (up to 50 meters or more).
  2. Bright LED or LCD Technology:
    • LED Displays: High-brightness LEDs (red, green, or amber) ensure readability in varying light conditions, including direct sunlight or at night.
    • LCD Displays: May include backlighting for better visibility.
  3. Communication Interfaces:
    • Supports data input via RS232, RS485, Ethernet, or wireless options.
    • Compatible with most weighbridge indicators and systems.
  4. Durability:
    • Rugged enclosures built to withstand outdoor conditions, often rated IP65 or higher for protection against dust, moisture, and weather extremes.
  5. Customizable Formats:
    • Can display weight units (kg, lb) and additional information like truck IDs, operator messages, or error codes.
  6. Mounting Options:
    • Wall-mounted, pole-mounted, or integrated into a weighbridge structure for optimal placement.

Benefits of Jumbo Displays

  1. Enhanced Visibility:
    • Ensures weight readings are clearly visible to truck drivers, operators, and site personnel, improving operational efficiency.
  2. Real-Time Data Display:
    • Shows live weight updates directly from the weighbridge system, reducing errors and misunderstandings.
  3. Improved Safety:
    • Eliminates the need for personnel to approach the weighbridge for weight readings, enhancing safety in high-traffic areas.
  4. Easy Integration:
    • Compatible with a wide range of weighbridge systems and indicators.
  5. Custom Messaging:
    • Some displays allow text messages or instructions to be shown, such as “Move Forward” or “Overloaded.”

Applications

  • Truck weighbridges at factories, warehouses, and logistics hubs.
  • Railway weighbridges.
  • Public weigh stations.
  • Mining and aggregate sites.
  • Industrial yards and ports.
