Advantages of Analog Load Cells

  1. Cost-Effective:
    • Generally more affordable than digital load cells.
  2. Wide Compatibility:
    • Compatible with a broad range of indicators and systems.
  3. Simple Design:
    • Easy to install, maintain, and replace.

Limitations

  1. Signal Quality:
    • The low-voltage signal is more susceptible to noise and interference over long distances.
    • Requires proper shielding and grounding.
  2. Calibration:
    • Analog load cells may need frequent recalibration to maintain accuracy.

Applications

  • Truck weighbridges.
  • Industrial platform scales.
  • Hopper and tank weighing systems.
  • Portable and axle weighers.

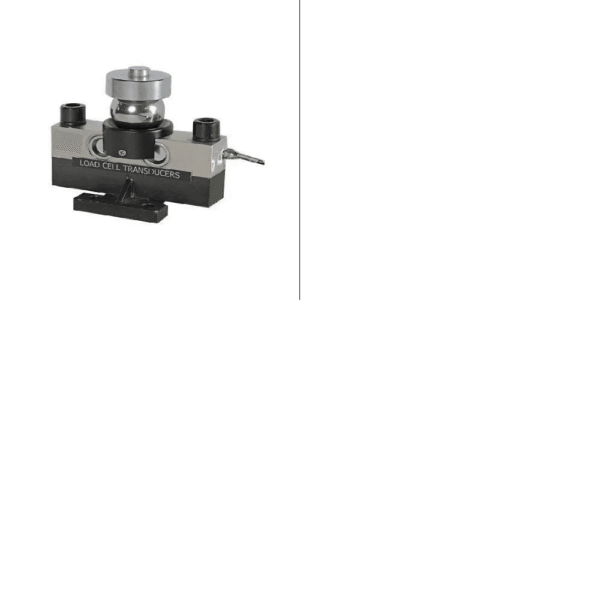

Keli K+ Analog 30 Ton Weighbridge Loadcell is an advanced burden cell KELI QS-D in their plan have an implicit simple computerized transformer (ADT). Advanced sign about weight is communicated under RS-485 interface that licenses to increment extensively remove between the gauging stage and gauging pointer (up to 1000 m).

We mainly deal in ADI Artech Loadcells and are distributors of ADI ARTECH. Seegate Corporation is based in the weighing industry for 25 years and more. It is known by all prominent Companies. We also have Keli Weighbridge loadcell and also full mounting hardware is provided. We also have Indicators that can be connected to the Keli weighbridge Loadcell to show the display output. Please contact us for details about the Indicator for the same. Check below for the Product specifications and more details regarding the Keli Weighbridge loadcell.

Product Specifications of Keli Weighbridge Load Cell  are as follows:

Brand K+ Weighbridge
Maximum Transmission Range 1200 m
Frequency 50 Hz
Housing Material Alloyed Steel, Stainless Steel
Maximum Permissible Load 150% F.S.

Some more details Keli K+ Weighbridge are as follows:

Rated Load 5t, 10t, 15t, 20t, 25t, 30t, 40t, 50t
Accuracy Class C2-C3
Sensitivity 2.0 ± 0.002 mv/V
Non-Linearity ± 0.03%F.S
Creep (30 minutes) < ±0.02% FSO



Description

Key Features of Analog Weighbridge Load Cells

  1. Operating Principle:
    • Typically, analog load cells use strain gauge technology.
    • When weight is applied, the load cell deforms slightly, and the strain gauges measure the change in resistance, converting it into an electrical signal.
  2. Signal Output:
    • Provides a low-level electrical signal, typically in millivolts per volt (mV/V).
    • The signal is proportional to the weight applied and requires amplification for further processing.
  3. Material:
    • Constructed from durable materials such as stainless steel or alloy steel to withstand heavy loads and harsh environments.
  4. Accuracy:
    • Highly accurate and stable under normal operating conditions.
    • Available in different capacities and sensitivities to suit various weighbridge sizes and applications.
  5. Compatibility:
    • Works with analog weighbridge indicators and junction boxes.
    • Requires calibration for integration into the weighing system.
  6. Durability:
    • Designed to withstand heavy loads, shock, vibration, and environmental factors.
    • Often sealed to IP65, IP67, or IP68 standards for protection against dust and water.
